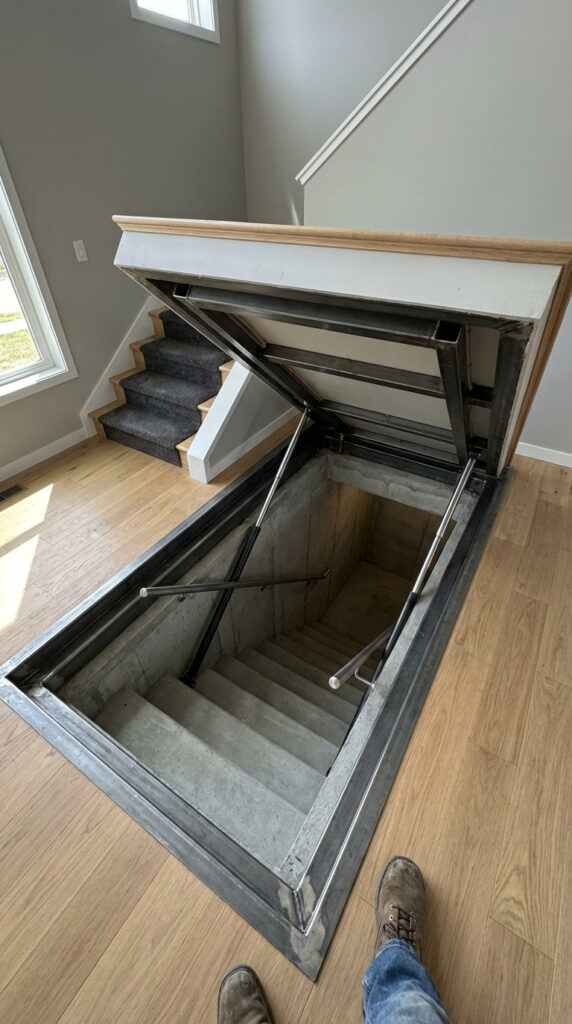

Hidden Concrete Shelter Beneath the House with Lift-Up Floor Hatch
Hidden underground concrete shelter beneath a private home. Reinforced structure, concealed floor hatch, and safe stair access.

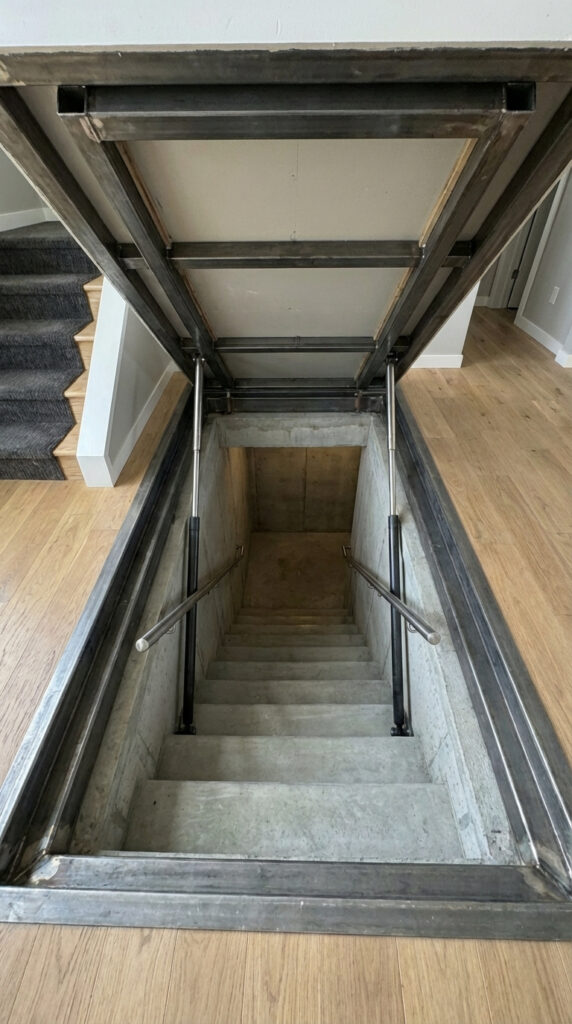

This hidden shelter beneath a private house is a robust underground structure designed for maximum safety and long-term reliability. The entrance is fully concealed within the floor and opens via a reinforced steel lift-up hatch equipped with gas struts for smooth and controlled operation.
The shelter is constructed from reinforced concrete, providing exceptional structural strength and protection against external threats, debris, and extreme conditions. A fixed internal staircase leads down into the underground space, allowing secure and rapid access when needed.
This underground shelter can function as an emergency bunker, safe room, or concealed storage area. The design allows for easy integration of ventilation systems, air filtration, autonomous power supply, water storage, and long-term food reserves.

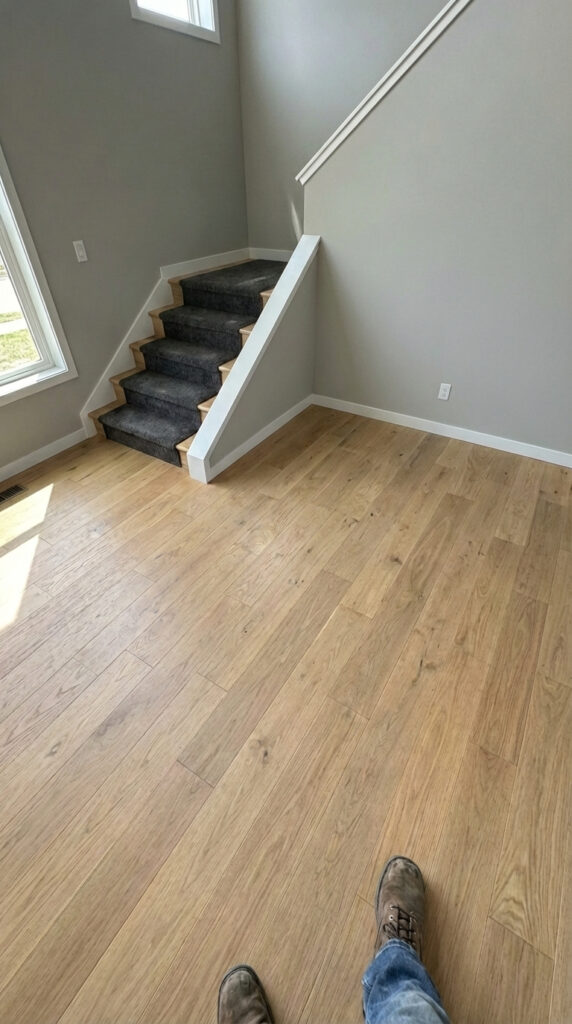

Such a solution is ideal for private residences where discretion, durability, and security are essential, while maintaining a clean and seamless interior appearance above ground.

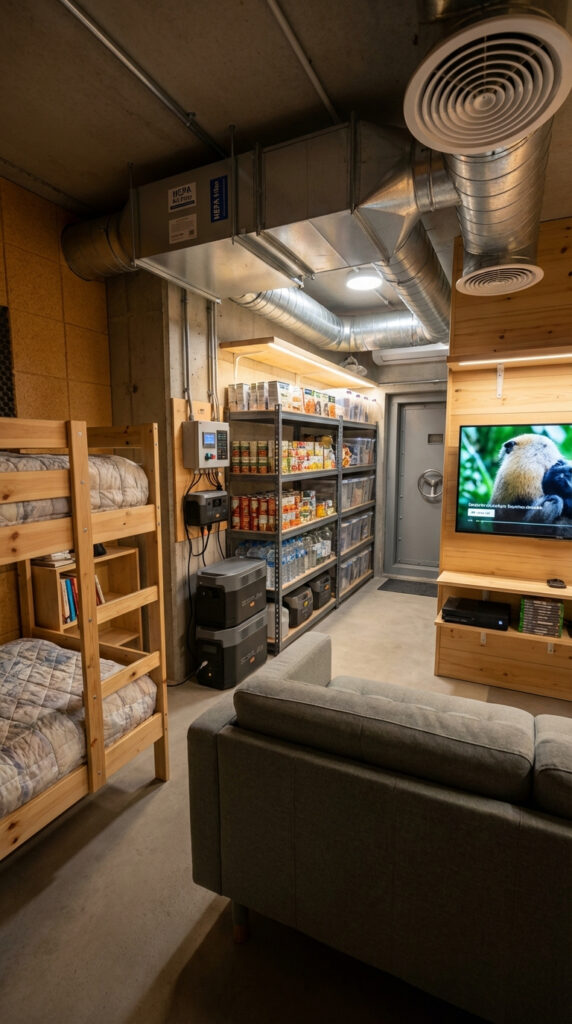

Multi-Purpose Living Room with Sleeping Area, Supplies, and Autonomous Systems
This underground living space is designed to support comfortable long-term habitation while maintaining full functionality and security. The room combines a relaxation zone, sleeping area, entertainment, and storage into a single well-organized environment.
A comfortable sofa and bunk beds provide seating and sleeping accommodations for multiple occupants. Integrated shelving systems store long-term food supplies, bottled water, and essential equipment, ensuring readiness for extended stays underground.
The room is equipped with a dedicated entertainment area featuring a television, gaming console, and a collection of video games, offering mental relief and normal daily routines during prolonged shelter use.

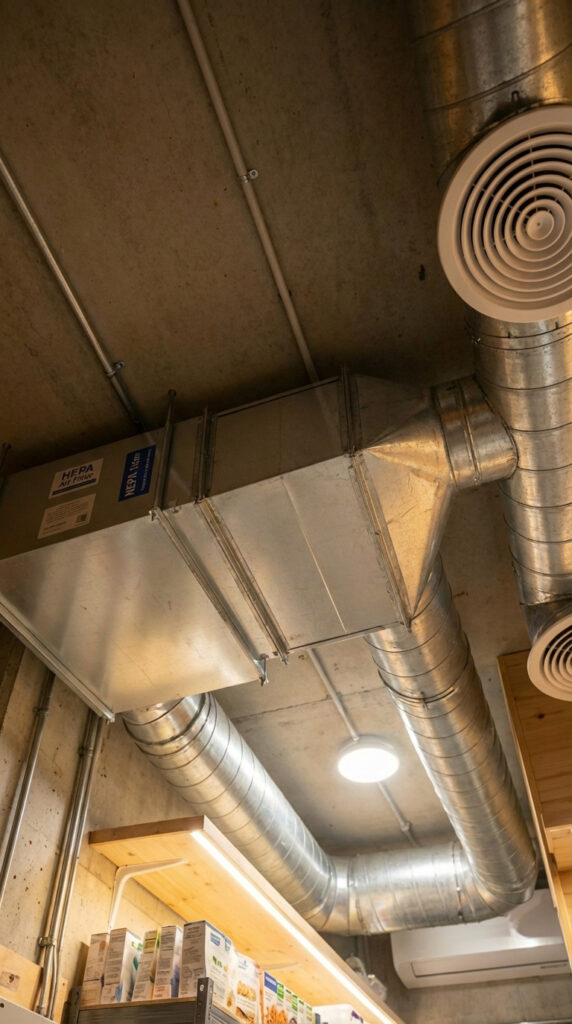

A professional ventilation system with air filtration ensures constant airflow and maintains healthy indoor air quality. Autonomous power is supplied by EcoFlow power stations, supporting lighting, electronics, and critical systems without reliance on the external grid.
This space demonstrates how a modern underground shelter can balance safety, autonomy, and livability, making it suitable for emergency situations, long-term sheltering, or off-grid living scenarios.

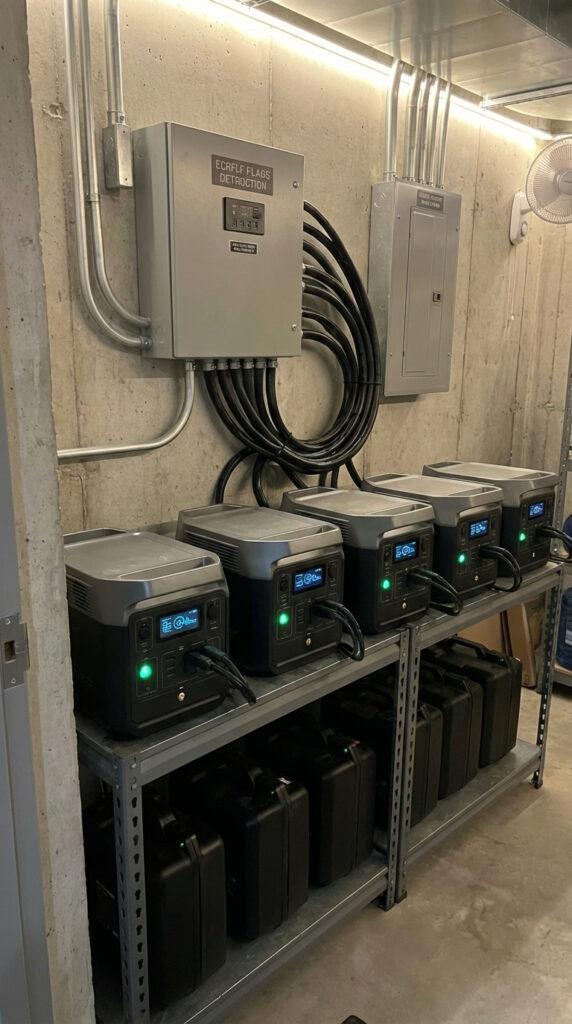

Redundant Backup Power System with Modular Battery Stations

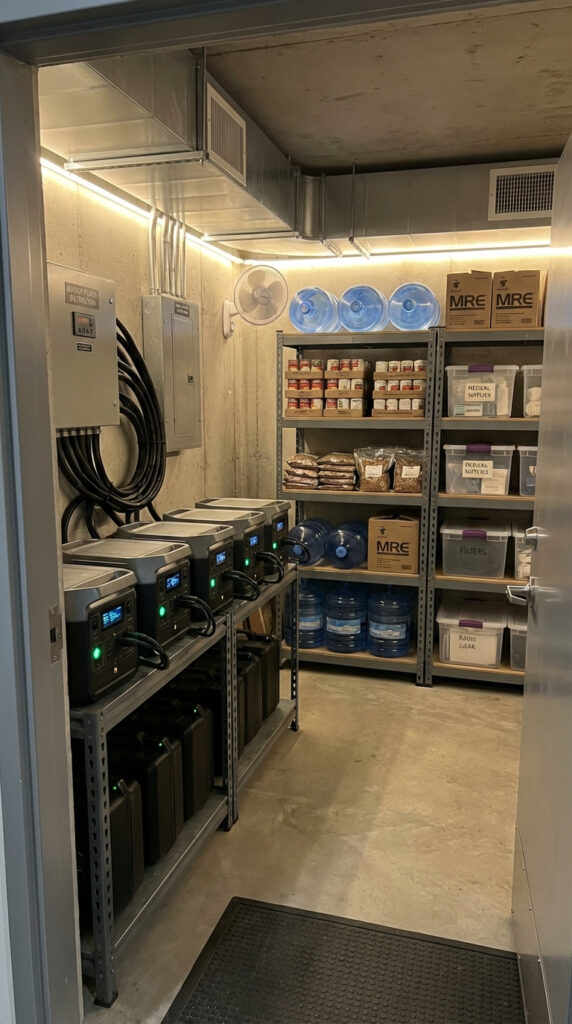

This underground shelter is equipped with a redundant backup power system designed for long-term ous operation without reliance on the external electrical grid. The system is built around multiple modular portable power stations, ensuring flexibility, scalability, and fault tolerance.
Each power unit operates independently, allowing critical systems to remain active even if one module is taken offline for maintenance or load balancing. This multi-unit configuration significantly increases reliability and reduces the risk of total power loss.
The power stations supply electricity to lighting, ventilation, air filtration, communication equipment, entertainment systems, and essential appliances. Battery expansion units provide extended runtime, supporting prolonged off-grid operation during emergencies or grid outages.
All electrical components are professionally installed, with protected cabling, dedicated control panels, and organized power distribution. The system is designed to integrate seamlessly with renewable energy sources or external generators if required.
This backup power solution ensures continuous operation, energy redundancy, and operational resilience — key elements for any modern underground shelter or survival-ready facility.

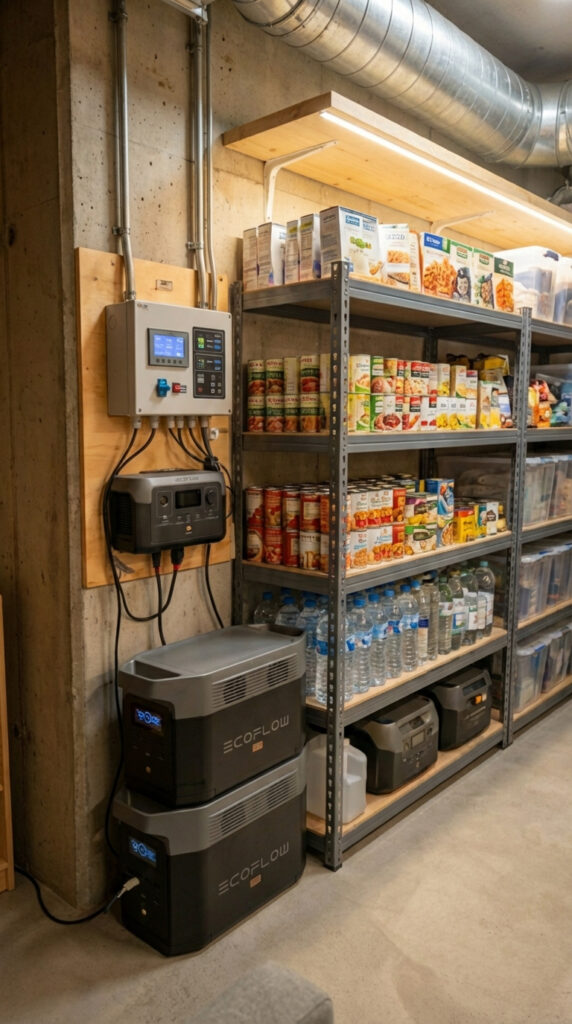

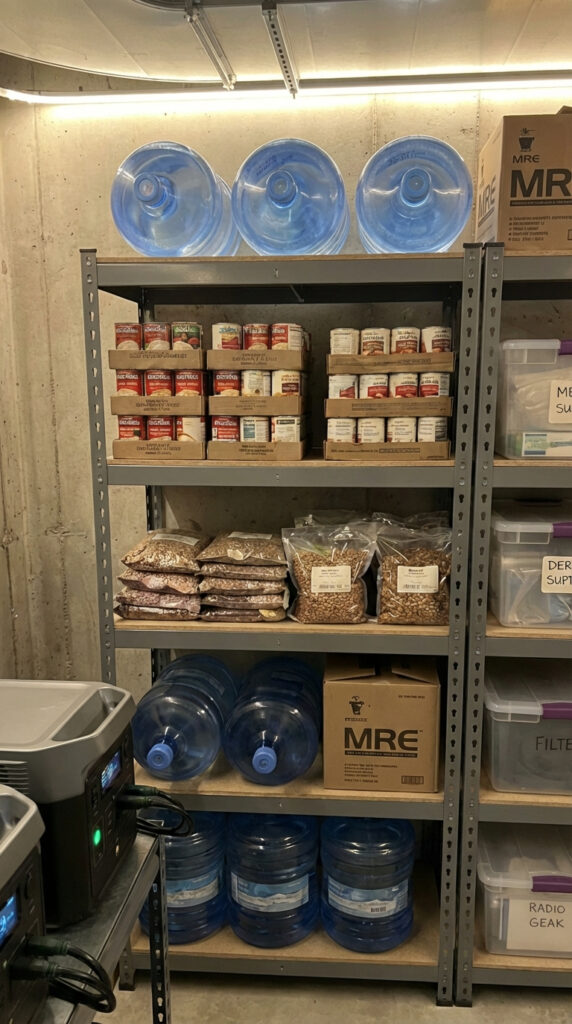

Long-Term Emergency Supplies and Organized Storage System
This underground shelter is equipped with a comprehensive long-term supply system designed to support ???????ous living during extended emergencies. All supplies are stored in organized, clearly labeled shelving units, allowing quick access and efficient inventory management.
The food reserves include sealed MRE meal boxes, canned foods, and bulk dry goods such as grains, legumes, and cereals, all selected for long shelf life and high caloric value. These supplies are suitable for extended storage without refrigeration and ensure reliable nutrition over long periods.
Large-capacity water containers provide a stable ????? ???????? ????, complemented by additional filtration components and replacement filters to maintain water safety if resupply is required.

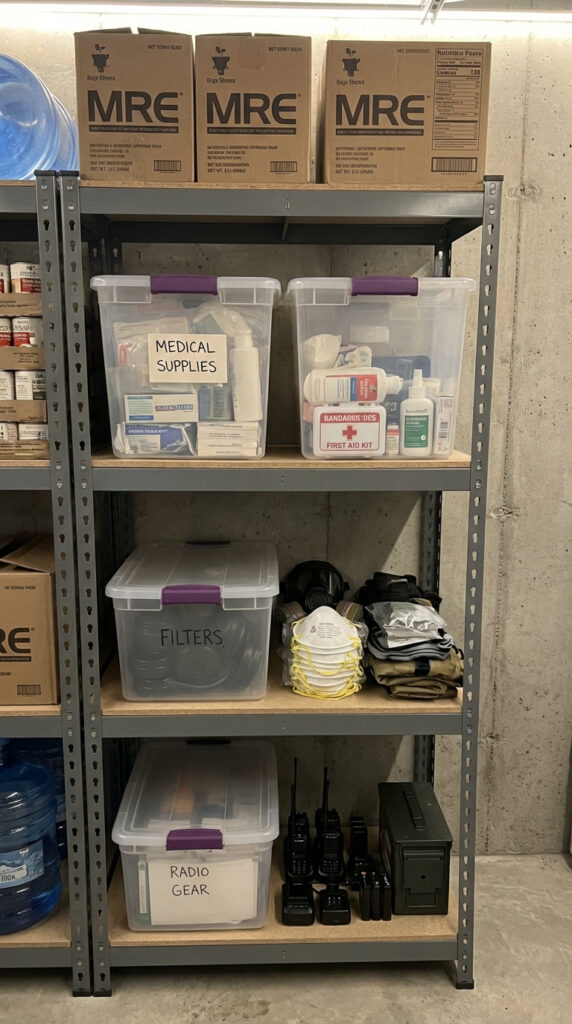

Medical supplies are stored separately in dedicated containers and include first aid kits, hygiene products, disinfectants, and essential medical consumables. Protective equipment, such as respirators and masks, is also available for use in contaminated or low-air-quality environments.
Communication equipment, including portable radios and backup devices, is securely stored to maintain internal coordination and external contact if needed.
This structured storage approach ensures readiness, sustainability, and rapid response, making the shelter suitable for long-term occupancy and survival-focused scenarios.

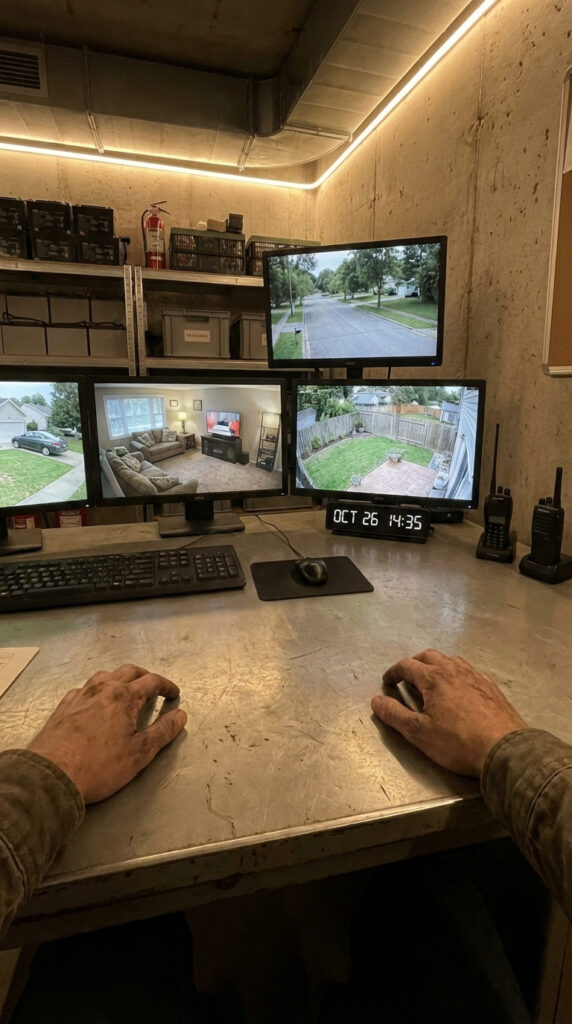

Integrated Surveillance and Monitoring Control Room
This underground shelter features a dedicated surveillance and monitoring control station designed to provide continuous situational awareness of the surrounding property. Multiple high-resolution cameras cover all critical exterior zones, including the street, yard, entrances, and perimeter areas.
Live video feeds are displayed on a multi-screen setup, allowing simultaneous monitoring of several viewpoints in real time. This configuration enables rapid threat assessment, early detection of unusual activity, and full visual control without exposing occupants to external risks.
The surveillance system operates independently from the main power grid and is supported by the shelter’s backup power infrastructure, ensuring uninterrupted operation during power outages or emergency scenarios. Recorded footage can be stored locally for later review and analysis.
Communication devices are positioned within arm’s reach, enabling immediate coordination between occupants or external contacts if required. The control room serves as a central command point for security, observation, and decision-making during extended shelter use.
This monitoring system significantly enhances security, preparedness, and response capability, making it an essential component of a modern underground shelter or survival-ready residence.

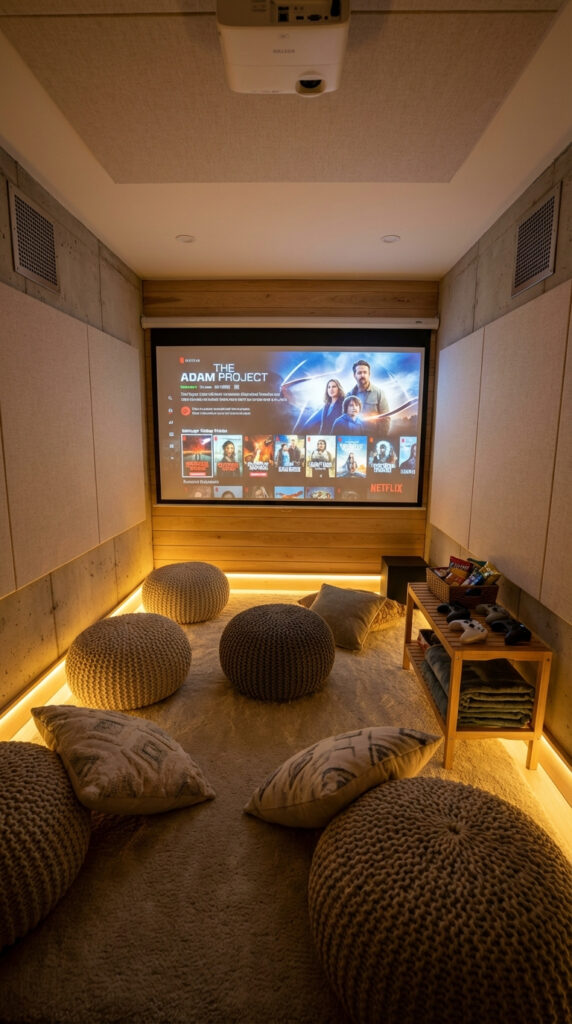

Recreation and Entertainment Room with Home Theater and Gaming Area

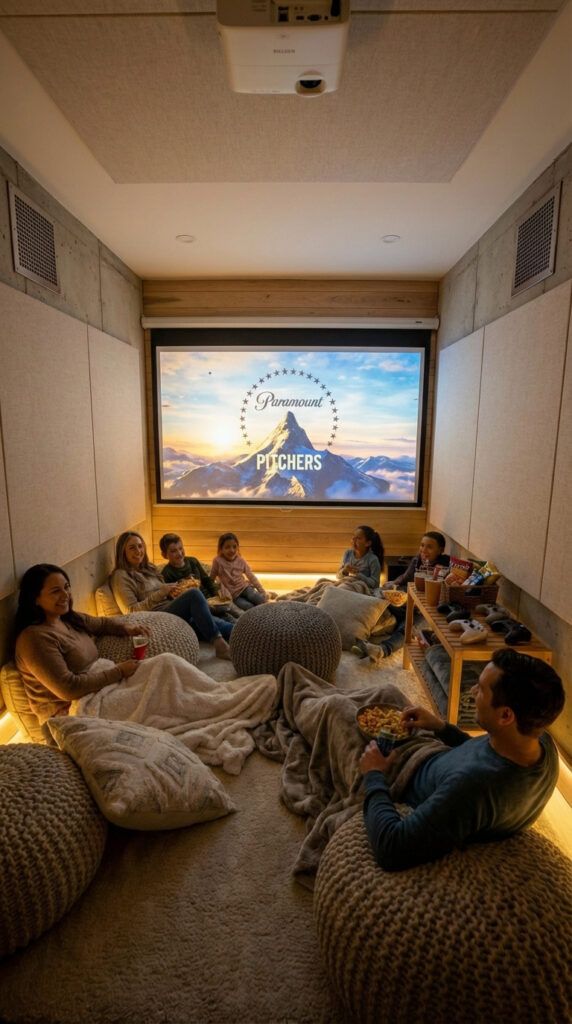

This underground shelter includes a dedicated recreation and entertainment room designed to support psychological comfort, relaxation, and normal daily routines during extended underground stays. The space functions as a private home theater and leisure zone, providing a sense of normalcy even in emergency conditions.

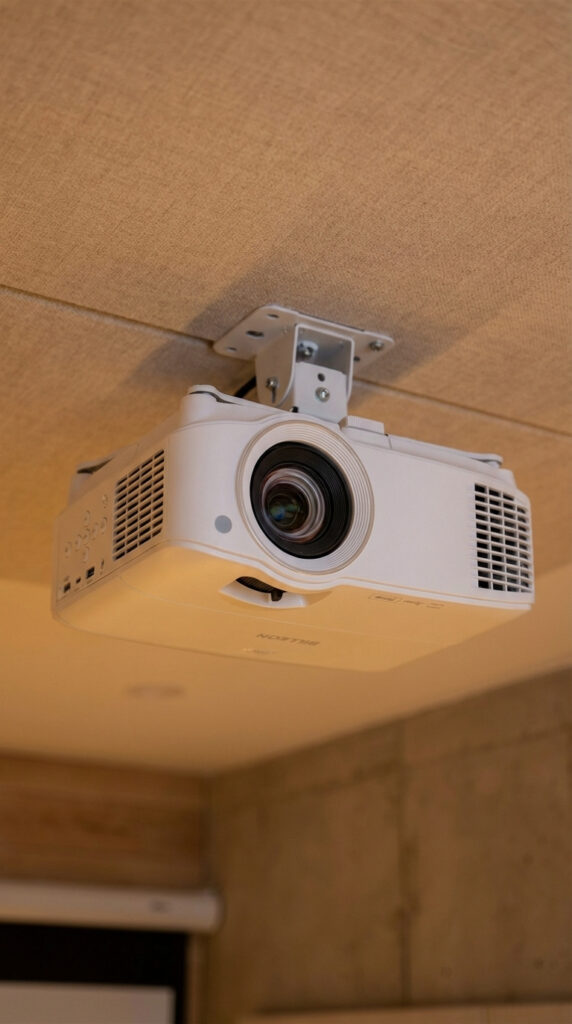

The room is equipped with a ceiling-mounted projector and a large projection screen, creating a cinematic viewing experience for movies, streaming services, and presentations. Acoustic wall panels and soft indirect lighting enhance sound quality and visual comfort while reducing fatigue.

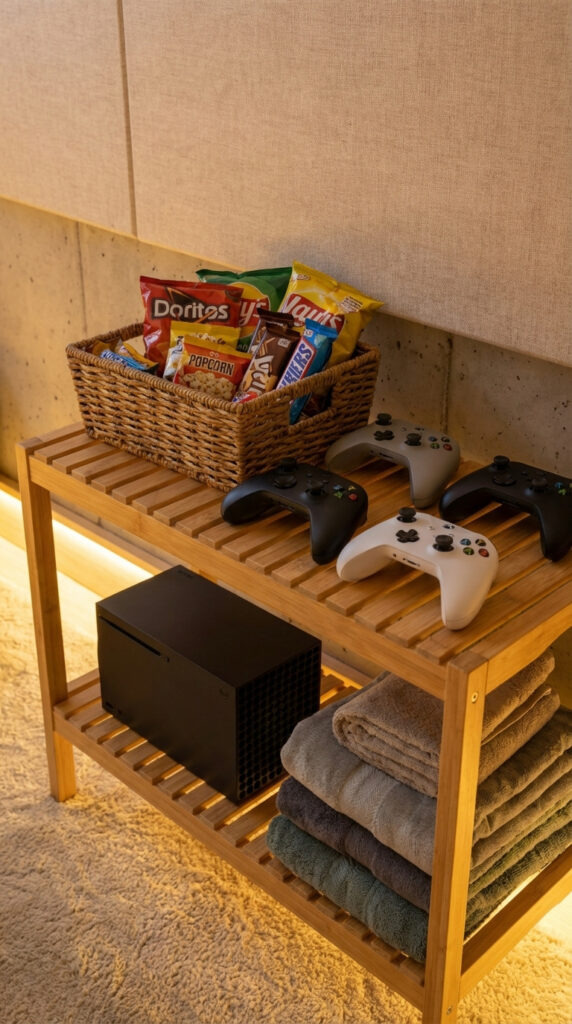

Comfortable floor seating, poufs, cushions, and soft textiles allow flexible seating arrangements for individuals or groups. A dedicated gaming area features modern consoles, multiple controllers, and accessories, supporting entertainment for all ages.
Snacks, blankets, and essential accessories are stored within arm’s reach, ensuring convenience during long viewing or gaming sessions. The room is fully integrated with the shelter’s ventilation and air circulation system, maintaining fresh air and temperature stability.
Powered by the shelter’s autonomous electrical system, the recreation room remains fully functional even during prolonged grid outages. This space plays a critical role in maintaining morale, mental well-being, and family cohesion during long-term shelter occupancy.
Autonomous Bathroom and Water Supply System with Storage and Ventilation

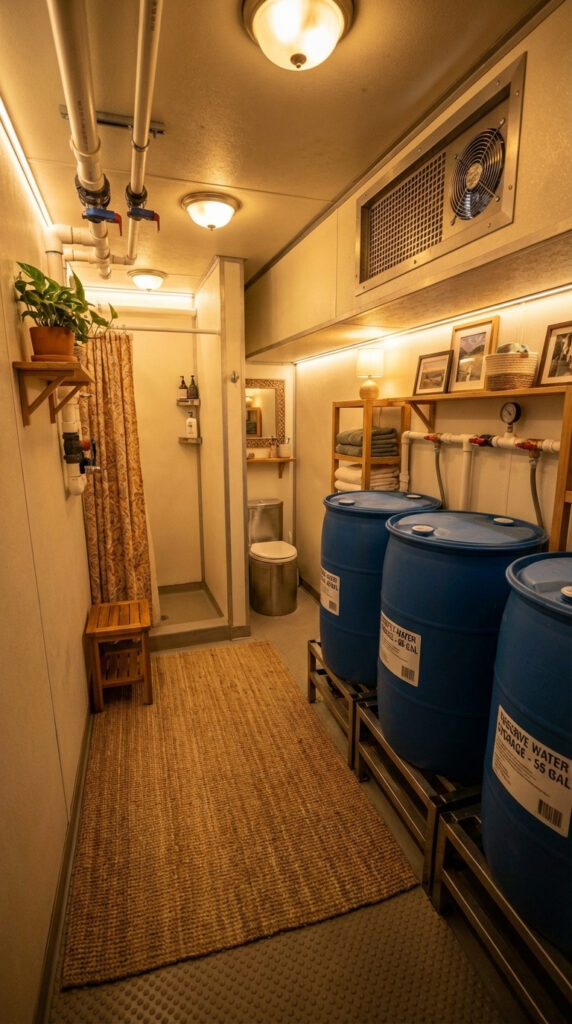

This underground shelter includes a fully functional bathroom and autonomous water supply system designed for long-term off-grid use. The layout combines sanitation, hygiene, and water storage in a compact yet efficient configuration suitable for extended underground living.

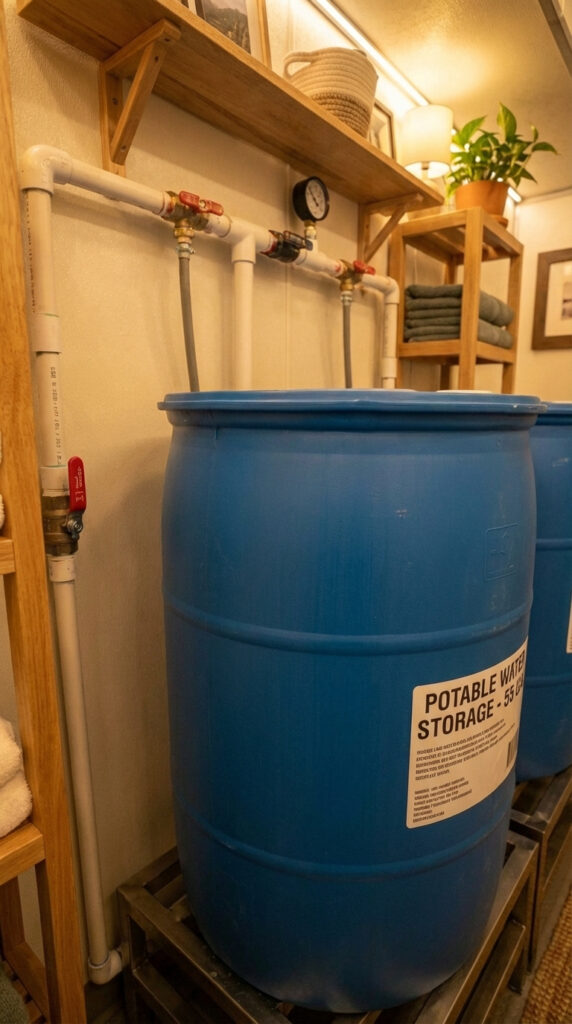

The water system is based on large-capacity potable water storage tanks, securely mounted and connected through reinforced plumbing lines. Pressure regulation and manual shut-off valves allow controlled distribution of water to all bathroom fixtures, ensuring safety and reliability.
The bathroom is equipped with a toilet, shower area, and wash facilities designed for low water consumption and easy maintenance. Durable materials and moisture-resistant finishes ensure long service life in enclosed underground environments.
A dedicated ventilation system removes humidity and maintains air quality, preventing condensation and mold buildup. This ensures a hygienic and comfortable environment even during prolonged shelter occupancy.
The system is designed to integrate seamlessly with water filtration units, backup pumps, and emergency sanitation solutions if required. Together, these elements provide full autonomy, hygiene, and operational resilience — essential for survival shelters, underground bunkers, and off-grid residential systems.

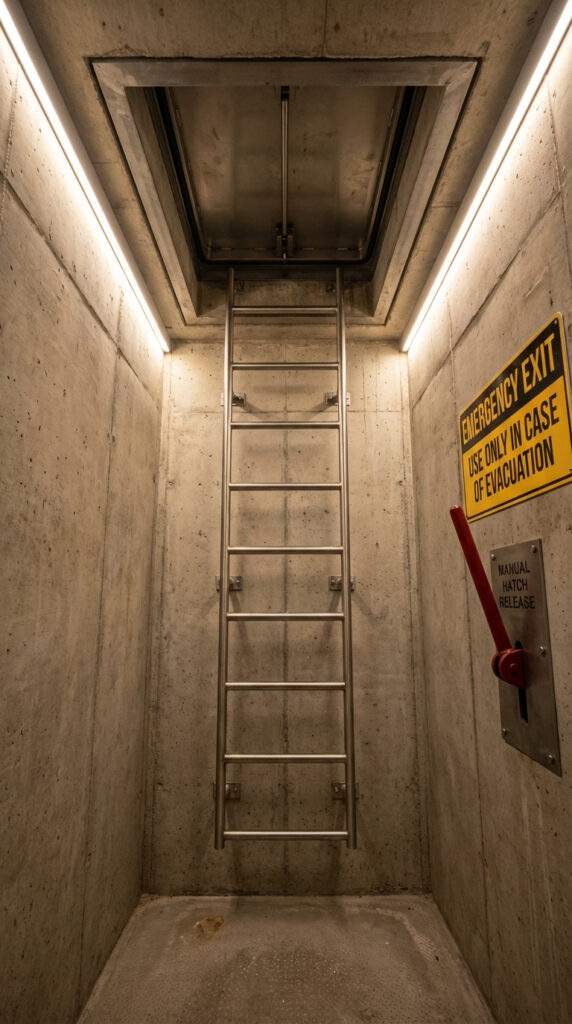

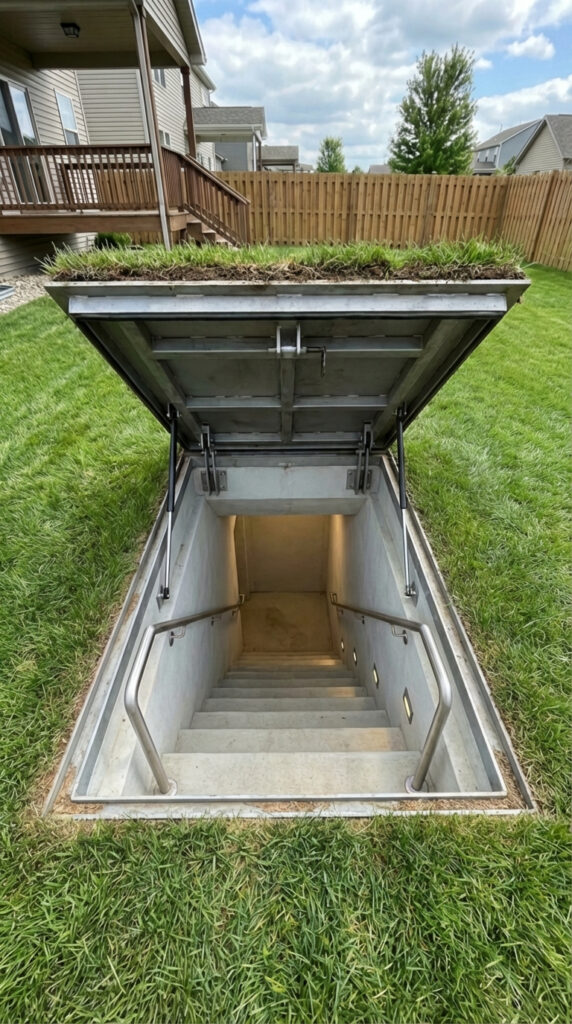

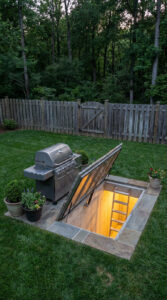

Hidden Emergency Exit with Concealed Lawn Hatch
This underground shelter is equipped with a concealed emergency exit designed to provide a safe and discreet evacuation route in critical situations. The exit is hidden beneath a reinforced hatch that blends seamlessly into the surrounding lawn, remaining visually indistinguishable from the landscape above.
A concrete access corridor leads from the main shelter to the emergency exit, ensuring structural protection throughout the evacuation path. The stairwell is fitted with non-slip steps, integrated lighting, and handrails to allow fast and secure movement even in low-visibility conditions.
The surface hatch is engineered for durability and resistance to external pressure while remaining easy to open from inside. Gas-assisted mechanisms and internal locking systems ensure reliable operation without external power.
This secondary exit provides redundancy in case the primary entrance is compromised, blocked, or unsafe to use. Its discreet design enhances security by preventing detection while maintaining rapid escape capability.
Such an emergency exit is a critical safety feature for modern underground shelters, survival bunkers, and secure residential designs where evacuation flexibility and concealment are essential.
Estimated Cost for a Custom Underground Bunker
A fully custom underground bunker with reinforced concrete structure, basement entry, hidden backyard emergency exit, and 4–5 functional rooms typically ranges from:
$250,000 – $550,000 USD
Included in the estimate:
Reinforced concrete construction and steel framing
Main entrance stairwell and concealed lawn hatch exit
Power & technical room (backup batteries, ventilation)
Long-term food/water storage room
Living / recreation room with home theater area
Bathroom with shower & toilet
Emergency systems (ventilation, cameras, lighting)
This project is a conceptual design created for inspiration and architectural visualization. It is not a real construction project or a technical blueprint
